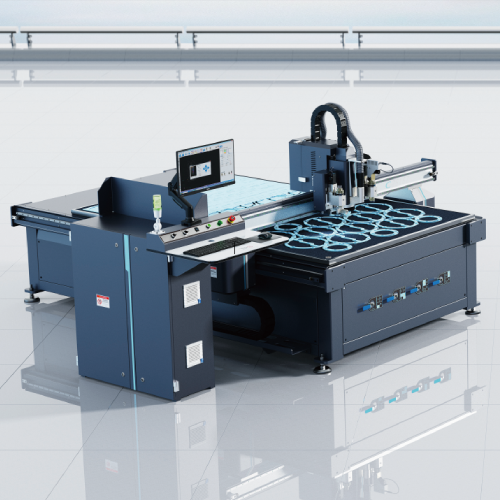

CZ Multi-functional CNC router

C-2516Z is a machine integrating visual positioning, carving, and cutting. Featuring new mechanical design, precision processing, and strict assembly, it represents a significant departure from traditional machines.

CONTACT NOW

Next: H9 Die Finishing Machine
Prev: S2+ digital cutting machine

All moving parts adopt imported components, including screws, guide rails, precision ground racks and pinions, and AC servo motors. The control system consists of a high-speed motion controller and MNT's independently developed high-speed engraving software, which eliminates the need for third-party editing before cutting. With multiple built-in cutting methods, the machine offers high speed, excellent stability, and outstanding performance. Its free running speed can reach 72 m/min, and the feeding speed ranges from 8 to 15 m/min. The C-2516Z not only provides users with a satisfying experience but also greatly improves processing efficiency.

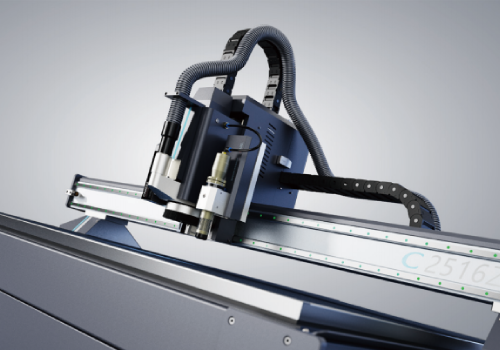

Single-knife sitting (standard model)

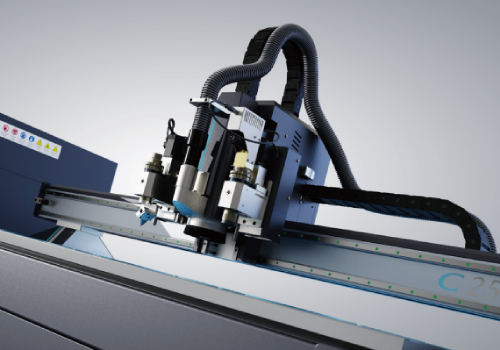

Double-knife sitter (optional model)

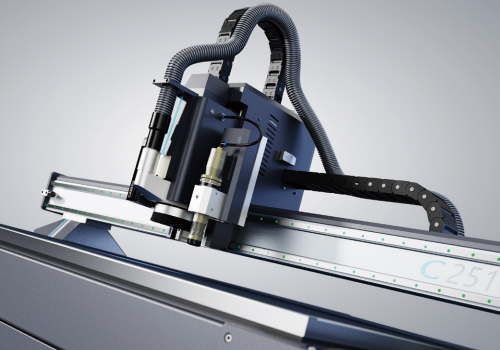

Srong adsorption for dust system

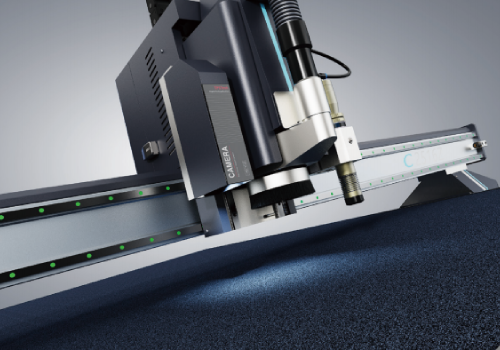

Automatic edge-finding and positioning function

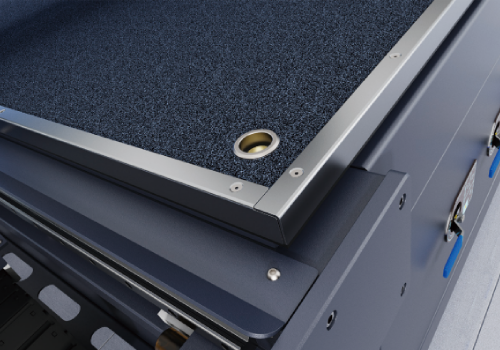

Design of Strong Vacuum Adsorption Platform

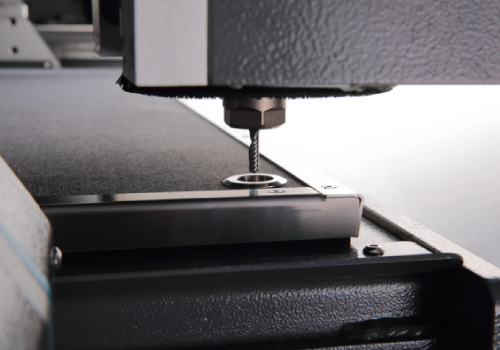

Automatic Spindle Calibration System

C-2516 Main technical parameters

Work area:	1600×2500mm
Equipment power:	3.5kw
Total Spindle Power:	2.2Kw
Vibration frequency of EOT:	14000rpm
Vacuum pump power:	7.5 kw
Repeat position accuracy:	±0.05
Moving axis qty.:	5Axis
Servo motor qty.:	5pcs
Capacity:	AC380V 50Hz
Overall dimension:	2430×3190×2540mm

C-3020 Main technical parameters

Work area:	2000×3000mm
Equipment power:	3.5kw
Total Spindle Power:	2.2Kw
Vibration frequency of EOT:	14000rpm
Vacuum pump power:	8.5 kw
Repeat position accuracy:	±0.05
Moving axis qty.:	5Axis
Servo motor qty.:	5pcs
Capacity:	AC380V 50Hz
Overall dimension:	2830×3690×2540mm

C-3541 Main technical parameters

Work area:	3500×4100mm
Equipment power:	3.5kw
Total Spindle Power:	2.2Kw
Vibration frequency of EOT:	14000rpm
Vacuum pump power:	8.5 kw×2
Repeat position accuracy:	±0.05
Moving axis qty.:	5Axis
Servo motor qty.:	5pcs
Capacity:	AC380V 50Hz
Overall dimension:	3930×4790×1750mm

C-4620 Main technical parameters

Work area:	2000×4600mm
Equipment power:	3.5kw
Total Spindle Power:	2.2Kw
Vibration frequency of EOT:	14000rpm
Vacuum pump power:	7.5 kw
Repeat position accuracy:	±0.05
Moving axis qty.:	5Axis
Servo motor qty.:	5pcs
Capacity:	AC380V 50Hz
Overall dimension:	2830×5200×2540mm
