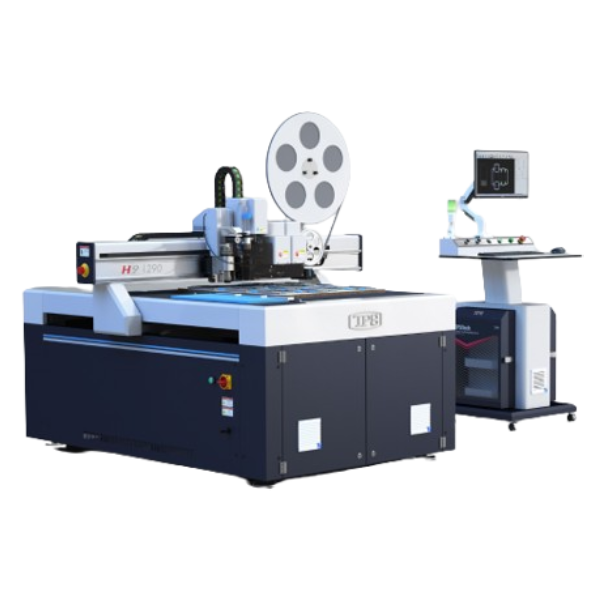

H9 Die Finishing Machine

The H9 Series is an all-in-one automatic system for cutting-die foam pad cutting and application. By ensuring a highly accurate fit between the foam pad and the die-board, it elevates die quality and replaces manual labor for a dramatic increase in efficiency. This transforms semi-finished dies into finished, ready-to-use products, enabling standardization and automation across the die-cutting industry.

CONTACT NOW

Next: T3 Digital Cutting Machine

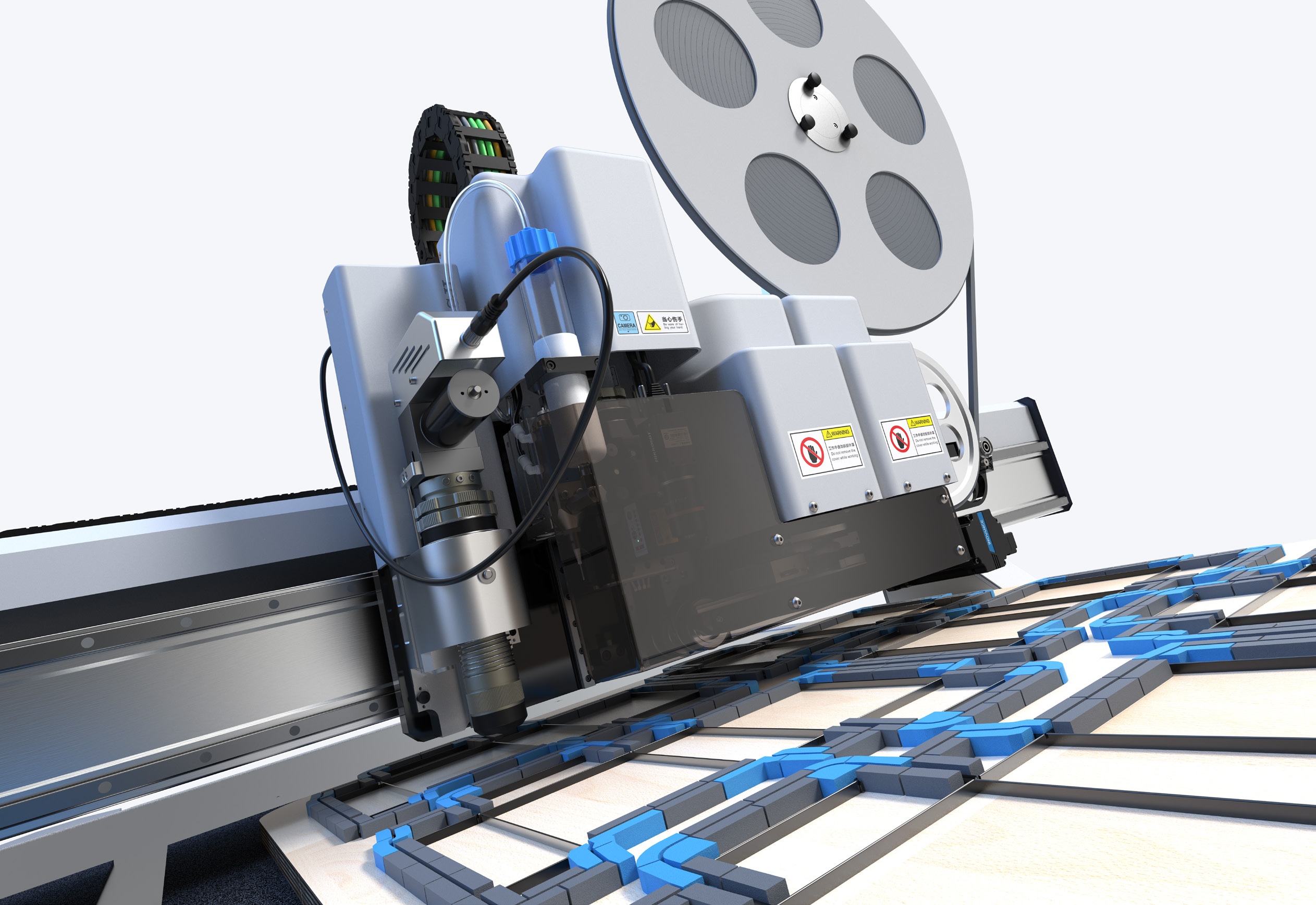

Integrated Foam Cutter-Applicator System for Die Boards .png

Redefining Die Processing for the Packaging Industry:

A One-Step Solution from Semi-Finished to Finished Products

■ Deliver Complete Cutting-Dies for Cost Reduction and Efficiency Gains: This equipment helps die-making shops provide a complete solution from semi-finished to finished products. By moving the tedious foam cutting and application process forward, it

helps the die-cutting stage completely eliminate time-consuming and labor-intensive manual operations, significantly improving die-cutting efficiency and notably reducing hidden costs in production.

■ Intelligent Automatic Foam Application for Superior Quality: The equipment automatically applies foam pads based on the cutting rules, ensuring precise coverage of all blades. The foam pads are distributed with optimal density and consistent spacing,

balancing strong support with efficient air expulsion. This greatly enhances the die's aesthetics, durability, and die-cutting yield.

■ Simple Operation with Triple Benefits: The user-friendly design makes operation convenient. It truly achieves time-saving, labor-saving, and material-saving, driving production efficiency to the maximum through intelligent upgrades.

Main technical parameters

Item	Parameter	Item	Parameter
Work area	900×1200mm	Moving axis qty	9 Axis
Work platform	Aluminum alloy honeycomb table and conveyor carpet	Servo motor qty	9 pcs
Max material processing height	≤30mm	Equipment power	5.0kW
Max processing speed	60m/min.	Vacuum pump power	2.2kW
Repeat position accuracy	±0.1mm	Power supply	AC220V 50Hz
Positioning method	CCD Camera, Red light	Net weight	600kg
Vibration frequency of EOT	14000mm/min.	Overall dimension	1935×2200×1850mm
