Featured Products
  • X7 Digital cutting machine
  • X7 Digital cutting machine

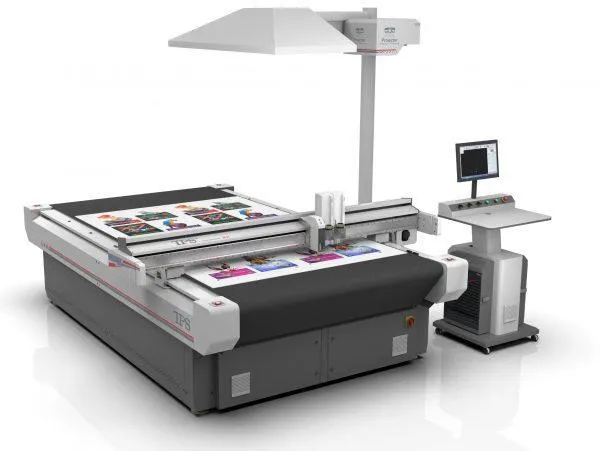

X7 Digital cutting machine

TPS X7 digital cutting machine

  • Welded frame design
  • Easy for installation
  • 6 individual vacuum zone

CONTACT NOW

X7 digital cutting machine adopts independent developed professional cutting CAM software, with functions of tabletop compensation, automatic edge-finding and positioning, over cutting optimization, multi-task and multi-station cycle cutting, small vision positioning, large vision positioning, projection positioning, laser mapping positioning, cost estimation, file management, etc.


TPS Technology

Digital cutting machine X7

Compact, heavy duty, and economical

Heavy duty welded frame
Heavy duty welded frame which is 30%+ more weight than competitors, this make machine running at increased acceleration & cutting speeds.
6 individual vacuum zones
The work surface is divided into six zones for the TPS X7 2516 model, each zone could be controlled by individual selection in TPScuttingstudio.
Versatility

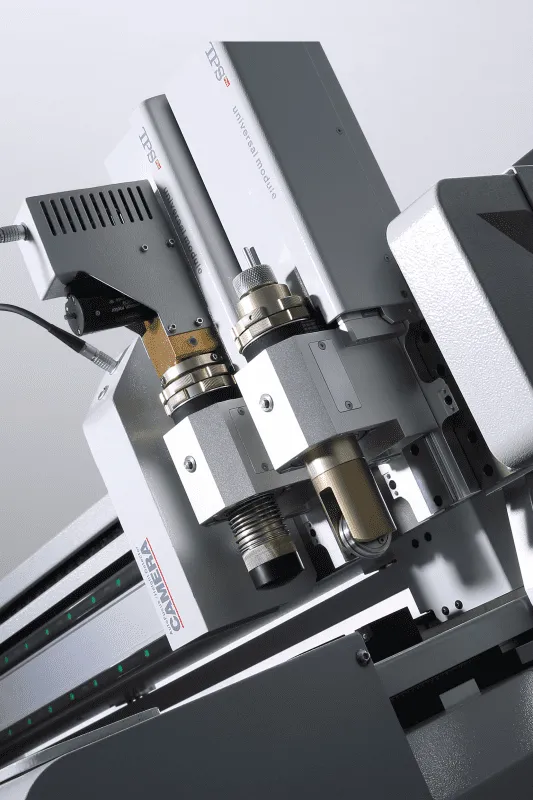

TPS offers two interchangeable tool modular which allows you to switch between routing, knife-cutting and kiss-cutting easily.

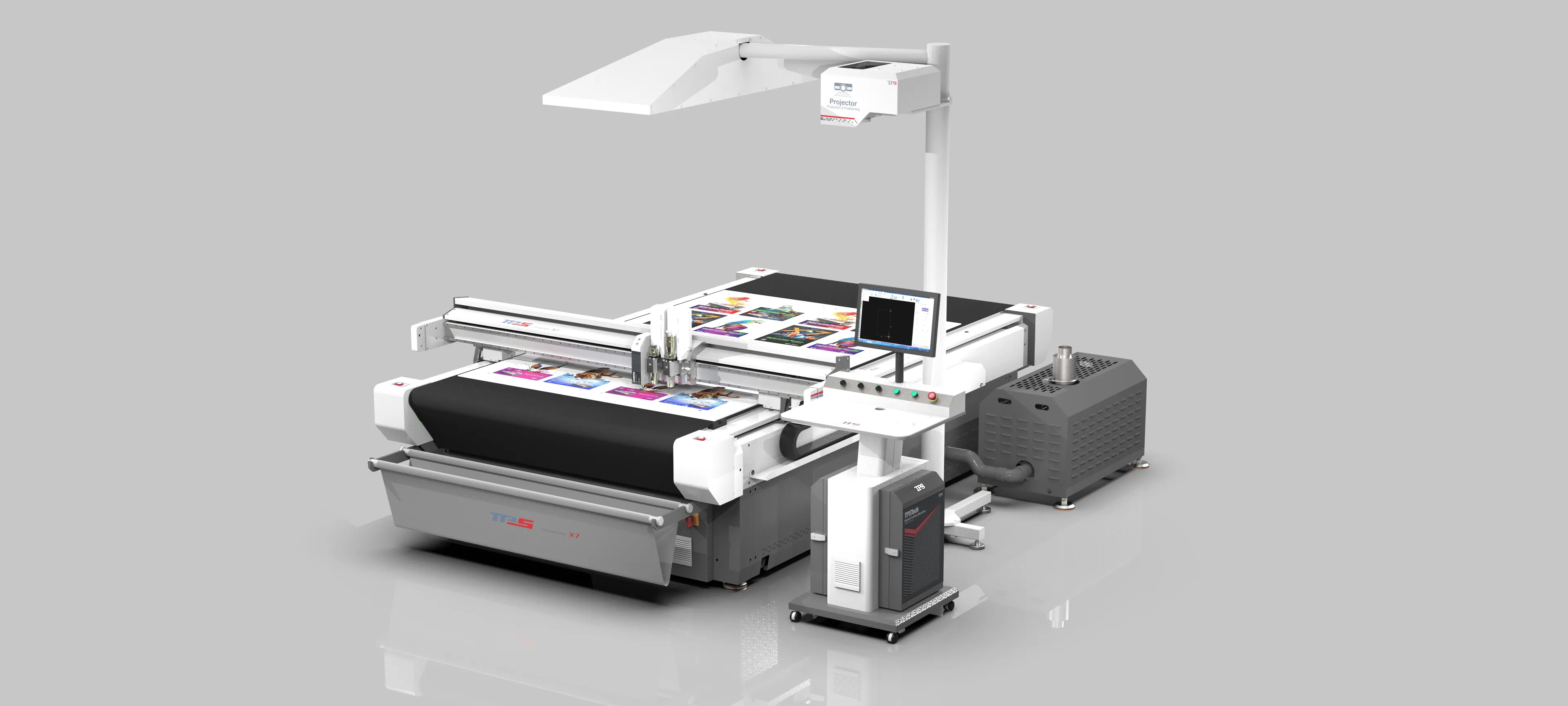

TPS X7 digital cutting machine

A powerful and versatile flatbed cutting system

X7 digital cutting machine adopts high-strength honeycomb aluminum adsorption tabletop with six- zone independent adsorption structure with good flatness and no deformation.

The flatness of the tabletop is detected by a high-precision distance detector, and the tabletop is corrected in real time by software to avoid the inconsistent cutting depth caused by the inconsistency between the tabletop and the tool drop, ensuring perfect cutting result.

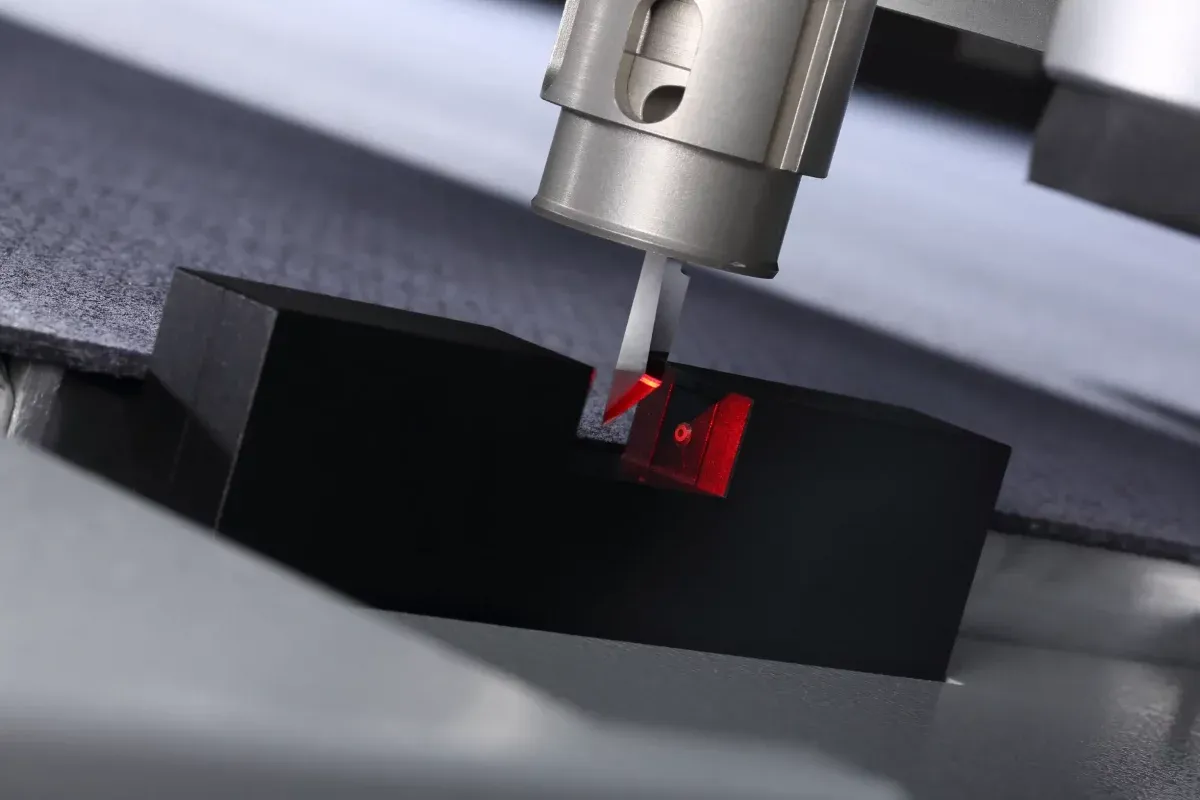

The X7 digital cutter equipped with fiber laser tools calibrating device, it guarantees a safe work environment and is compliant to worldwide health and safety requirements.

We design upgradability

X7 digital cutting machine adopts independent developed professional cutting CAM software, with functions of tabletop compensation, automatic edge-finding and positioning, over cutting optimization, multi-task and multi-station cycle cutting, small vision positioning, large vision positioning, projection positioning, laser mapping positioning, cost estimation, file management, etc

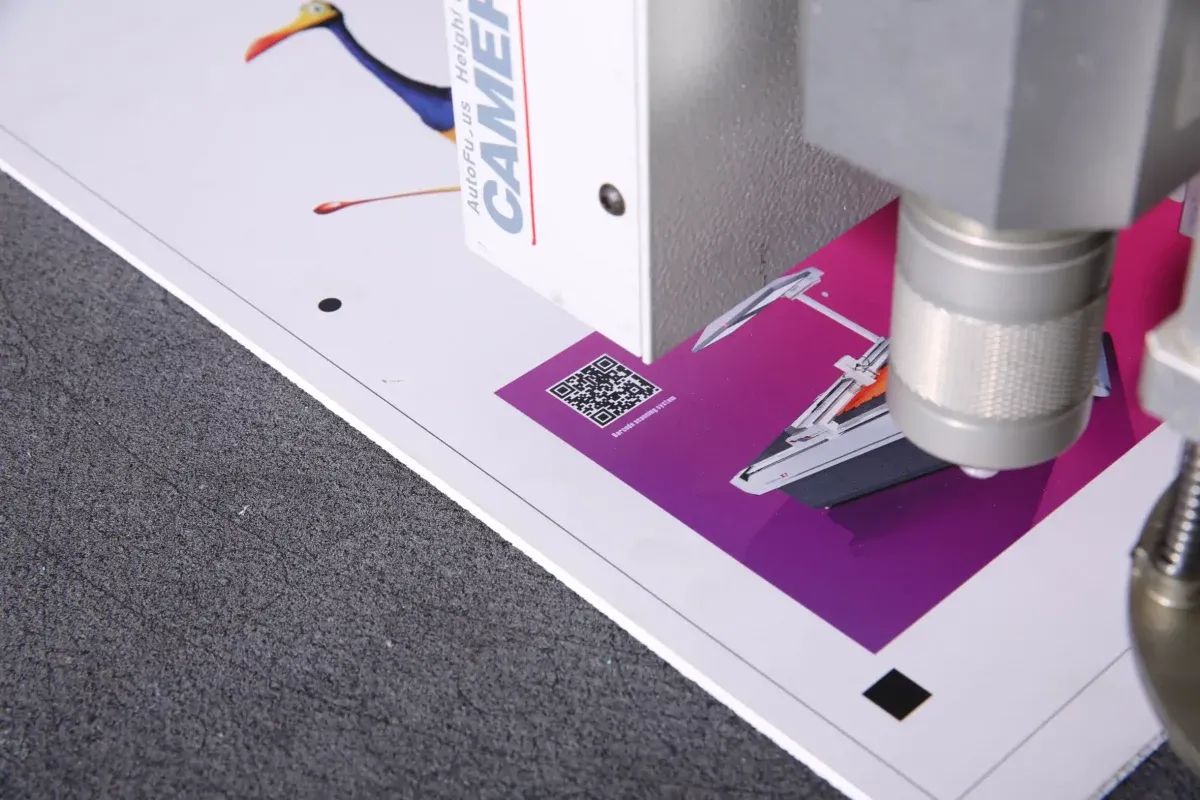

HD CCD camera

High resolution Hikvision industrial camera
1. FPS: 173
2. Interface: Gigabit Ethenet
3. FA camera lens

Numbers

The customer is very important, the customer will be followed by the customer. So we care about all of our valued customer.

58
countries covered
2,500
unit machines installed
365
days support

Specifications

Key features of X7 digital cutter
General
  • Equipment power: 2.5kw
  • Vacuum pump power: 7.5/8.6kw
  • Capacity: 220V/ 380W 3 phase
  • Interface: USB/ PCIE Slot
Dimensions
  • Overall dimension : 4040x3273x2630mm
  • Working area: 1600x2500mm
  • Maximum material size: 1700x3000mm
  • Beam height: 60mm
Others
  • Product weight: 1500 kgs
  • Maximum material processing height: 30mm
  • Maximum processing speed: 72m/ min
  • Vacuum zone: 6
Safety anti-collision mechanism
TPS digital cutting machine is equipped with a safety light curtain sensor and a mechanical anti- collision mechanism to prevent the device from damaging personnel during high- speed operation.
Laser mapping positioning function
Users can use the laser mapping and positioning function to map various shapes of the material, and the user can place the patterns to be processed into mapping range for precise cutting, which greatly improves the utilization of the material.

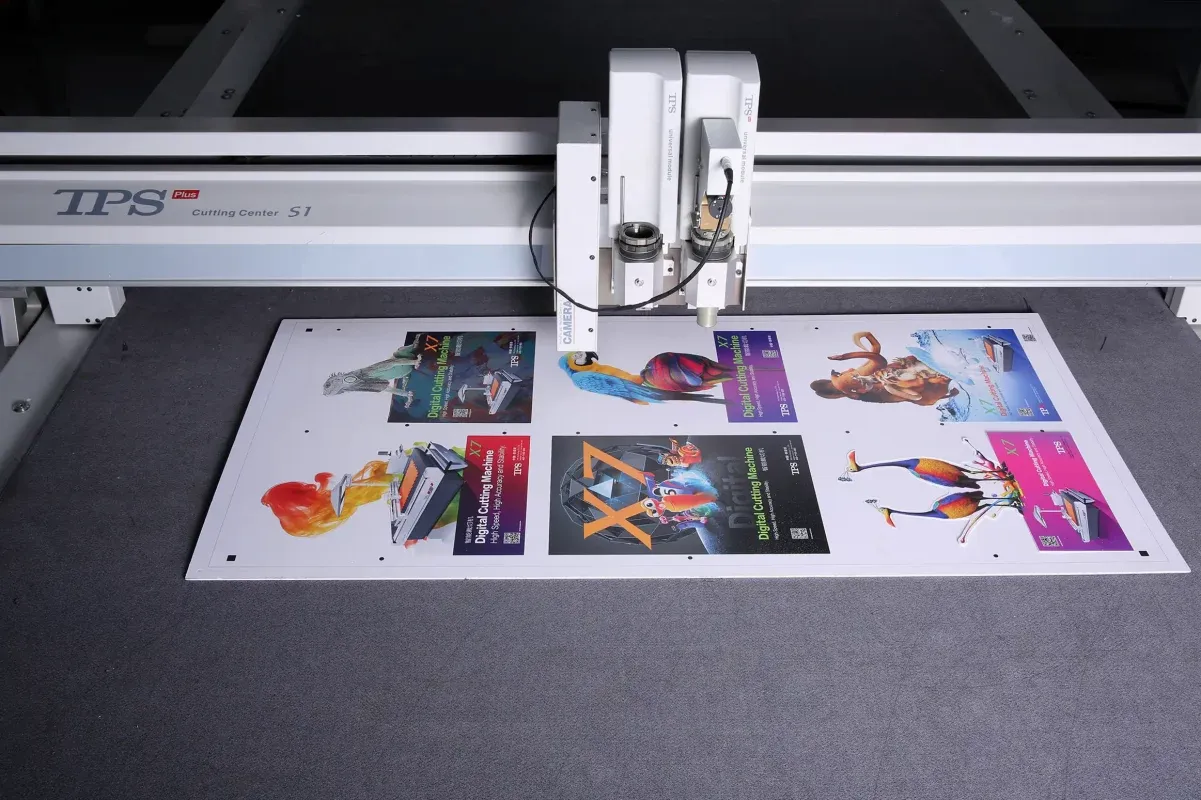

Large Vision Positioning System
Since the flexible material may be deformed by the factors such as temperature, humidity, ink, pressure, stretching, wrinkles, etc., the original document outline cannot be used to accurately cut the actual pattern, we use the function of the high- precision camera’s real-time shooting and contour extraction, thus to accurately identify and extract real-time work piece image contours for precise nesting.

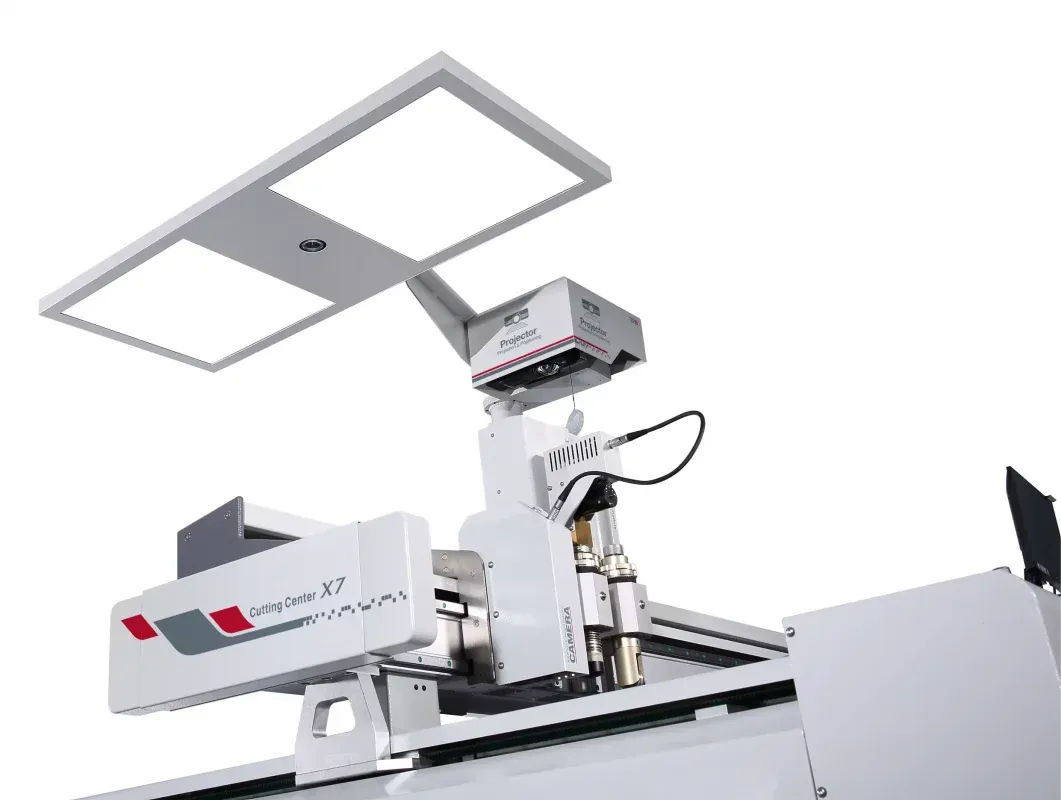

Projection Positioning System
In actual cutting process, it is difficult for users to accurately align the material with the cutting pattern. This system can project the cutting pattern on the processing table with 1:1, which is convenient for users to feed feed and align the material. The user can also place the irregular material into the projection area for the alignment cutting, which greatly improves the utilization of the material.
Prevent over-cutting function
Preventing inner angles from over- cut, recovering graphic’s outline maximally.

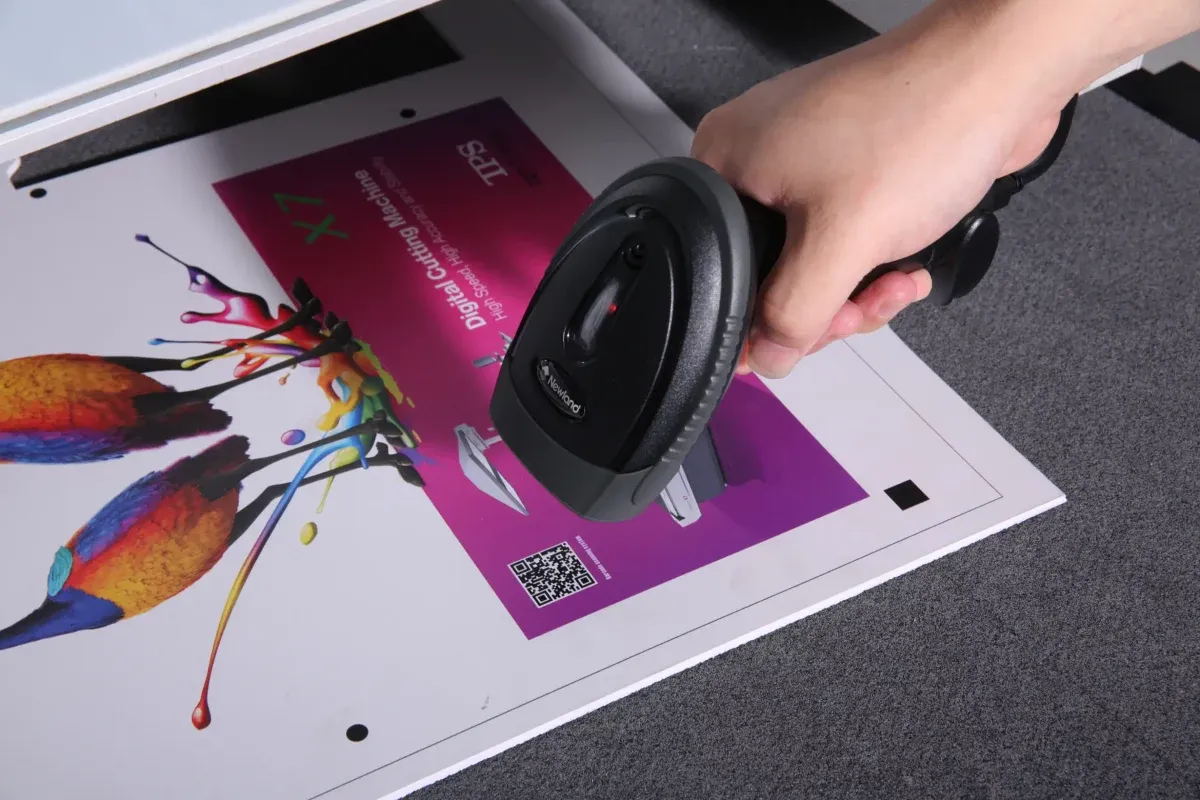

File Management System
X7 CAM software for sealing industry can manage the processed documents including file name, processing time, quantity, materials, batches, etc., and generate barcode or QR code, which can be quickly called out by scanning code. It is convenient for future re- processing. The management of historic processed documents greatly facilites users for operation.
Available tools
Creasing wheel type1
Quick View
Driven rotary tool
Quick View
Electric oscillating tool
Quick View
Kiss cut tool
Quick View
Pneumatic oscillating tool
Quick View
Universal cutting tool
Quick View
V-cut tool
Quick View

Packing List

Product Name Dimension/mm Qty/Pkgs G.W/kgs N.W/kgs Volume/cbm HS CODE
X7 2280*3690*1760 1 1650 1320 14.81 8458110090
1140*1360*1600 1 250 180 2.48

Terms of delivery

Loading port Ningbo/Shanghai
Delivery time 30 days after order confirmed
Ps: For customized configuration or dimension, please confirm with us.

Technical parameter

Model No S2+4060                                              S2+6090
Overall dimension 2310×880×1150mm                   3250×1145×1200mm
Work area 400×600mm                                     600×900mm
Auto–feeder Included
Work platform Aviation aluminum platform and conveyor carpet
Max cutting thickness 10mm
Applications Applied to paper, card board, sticker, reflective material, corrugated board, PVC sheet, foam board, etc.
Exchange tools Yes
Beam height 20mm
Material fixation method Vacuum adsorption
Max cutting speed 72m/min.
QR code function Included
Software Included
Interface connectivity PCIE slot
Positioning method CCD camera, red light
Repeatable cutting

accuracy

 ±0.1mm
Drive system Servo motor, linear guide and timing belt
Number of motor 4pcs                                                          5pcs
Working environment Temp.: 0°C-40°C ; Humidity : 20%-80%RH
Equipment power 2.8Kw (220V/50Hz)
Vacuum pump power 1.5Kw
Net weight 350Kgs                                                  460Kgs
Warranty 12 months after machine installed
