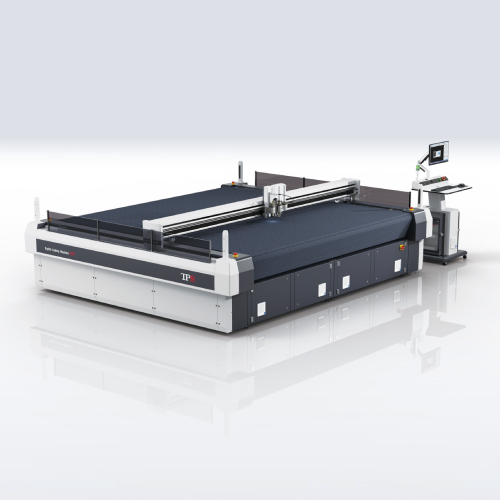

H5 Linear Motor Digital Cutting Machine

Heavy-Duty Base, Precision Built

At the heart of the H5 series lies a robust, heavy-duty base—engineered for absolute stability.

Designed to withstand high loads and extreme speeds, it guarantees ultra-smooth performance and exceptional cutting precision in every operation.

Zero-Transmission. Maximum Efficiency

Withlinear motor drive technology, the H5 replaces traditional mechanics for direct, ultra-responsive motion—delivering faster cycles and superior overall performance.

Automatic knife installation/AKI

Automatic Knife Initialization achieves accuracy of <0.2mm, with efficiency boosted by 30% for safer, faster, more precise operations.

Table Height Compensation

With high-precision sensors and real-time software corrections, the tabletop's flatness is maintained, ensuring consistent cutting depth and flawless performance throughout the process.

Application industry

It is widely used in various fields such as advertising, spatial display, packaging, textile fabrics, luggage and leather, automotiveinteriors, and home furnishing.

Safety

Engineered for operator protection, H5 series features automated safety screens and a virtual light curtain that restrict access during operation without compromising visibility—ensuring both safety and workflow continuity.

Smart Positioning System

H5 series features a high-precision CCD camera system for real-time image capture, enabling automatic edge detection, registration mark recognition, and dynamic pattern adjustment to compensate for material distortion. Supporting a wide range of file formats (AI, DXF, PDF, etc.), it delivers repeat positioning accuracy within 0.1 mm, even in low-light environments. The integrated Reverse Operation function enhances cutting precision by using the camera to identify material corners and accurately align cutting paths from the reverse side—either through intelligent registration mark detection or manual coordinate input—ensuring optimal results regardless of material orientation.

H5 2532 ATC

H5 2516 ATC

H5 3251 ATC
