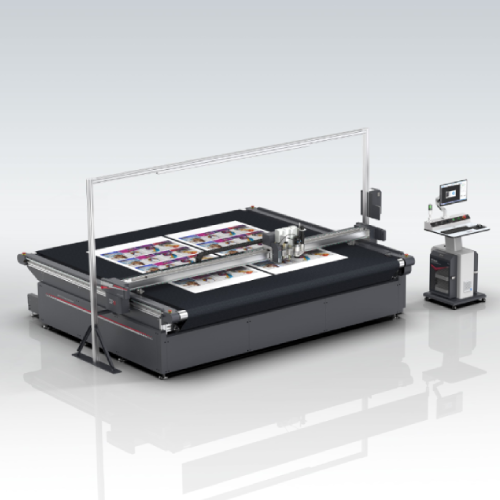

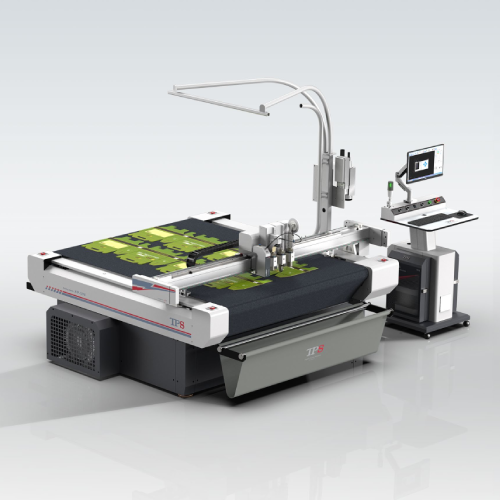

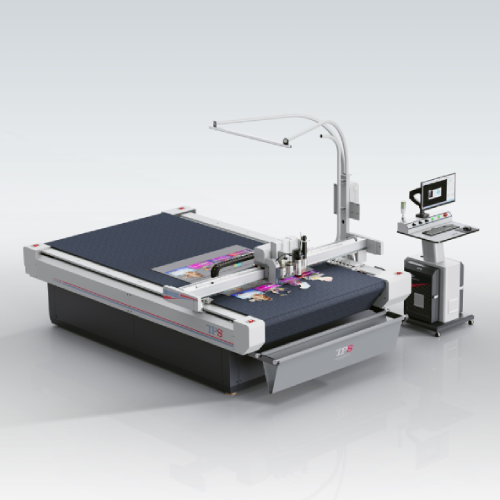

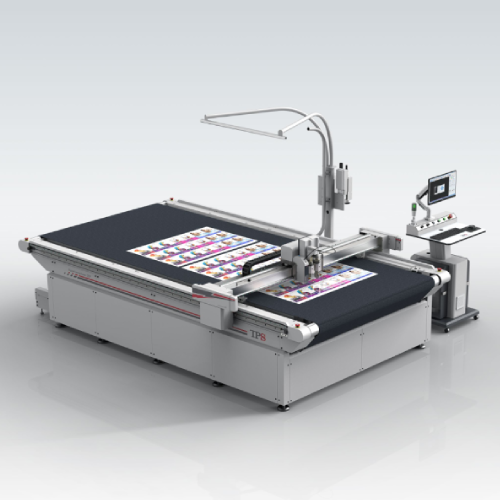

X9 Digital cutting machine

TPS X9 digital cutting machine

  • Modular design
  • 1.8KW router(Optional)
  • Automatically Router bit Changer

CONTACT NOW

1. Cutting module
Two universal cutting heads apply to different cutting tools and one individual 1.8kw router head.
2. HD camera
High resolution Hikvision industrial camera.  (1) FPS: 173.  (2) Interface: Gigabit Ethenet. (3) FA camera lens.
3. Laser distance detector
The flatness of tabletop is detected by a high- precision Japan made distance detector, and the tabletop is corrected in real timeoy software to avoid the inconsistent cutting depth caused by the inconsistency between the tabletop and the tool drop, ensuring perfect cutting result. The sensor could be also used to detect the thickness and shape of the diferent objects.
4. Safety anti-collision system
Equipped with safety light curtain sensors and mechanical anti- colision mechanism to prevent the device from damagind personnel during high-speed moving.
5. Automatic knife installation /AKl
Pressure sensitive and laser sensitive automatic knife initialization tool makes changing knife blades and router bits much saferand faster because operator errors in connection with such changes are eliminated.
6. Automatic router bit changer / ARC
X9 cutter is equipped with a pneumatic clamping system. Together with the ARC, it can hold up to 9 router bits, which enables fully automated routing even with jobs that require different bit types and diameters.
7. Router module
1.8kw router module with speed of up to 60000 RPM, water cooling and air cooling, pneumatic clamping system, dust extraction ensures clean working conditions and impeccable edge quality.

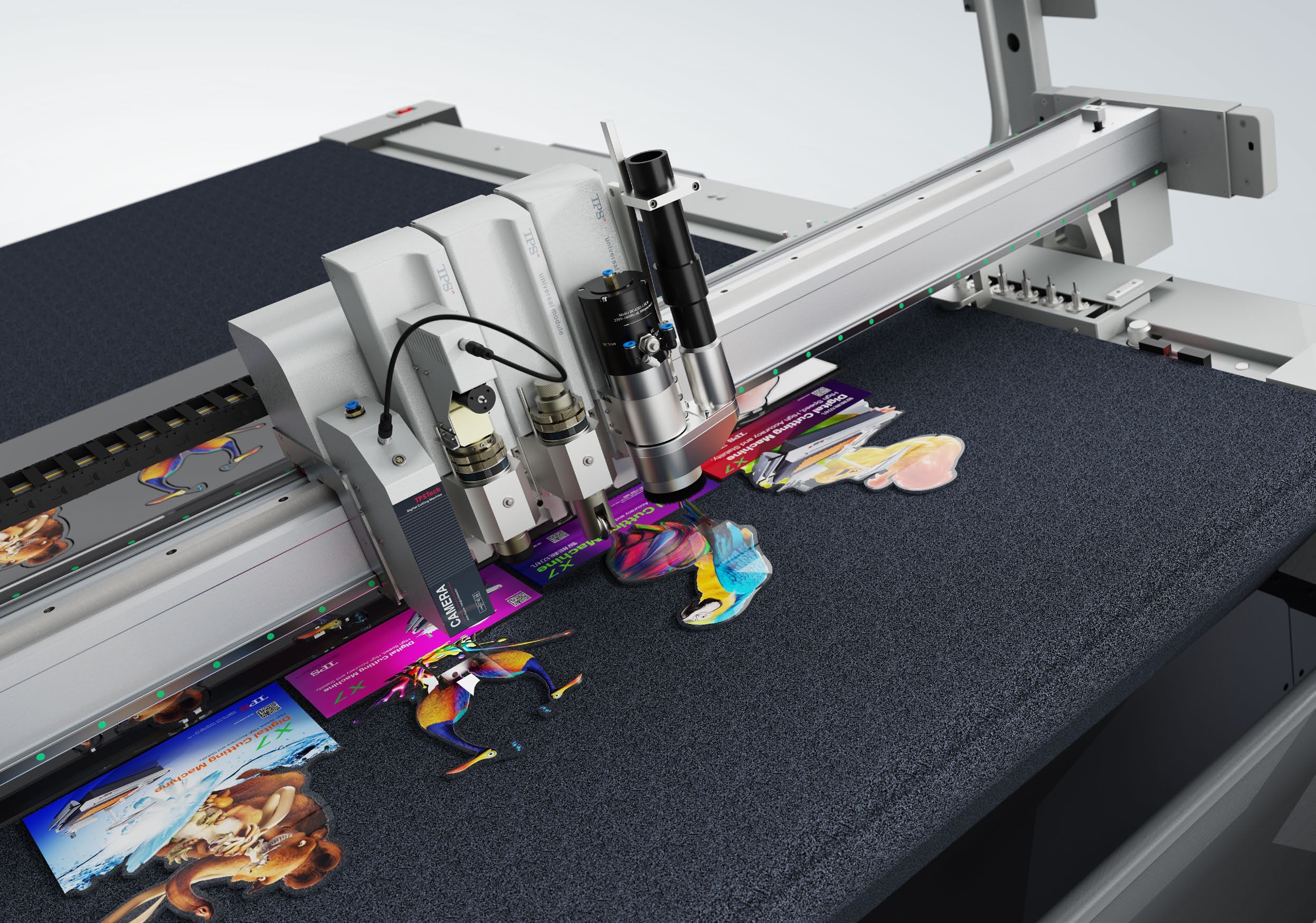

X9 Digital cutting machine.png

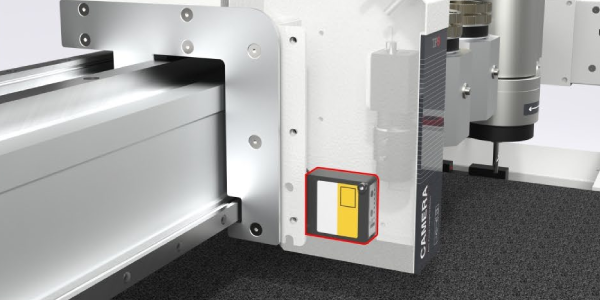

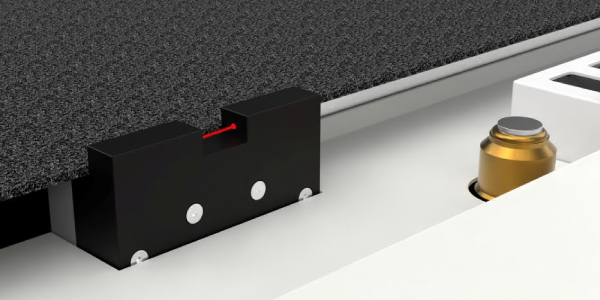

Laser distance detector

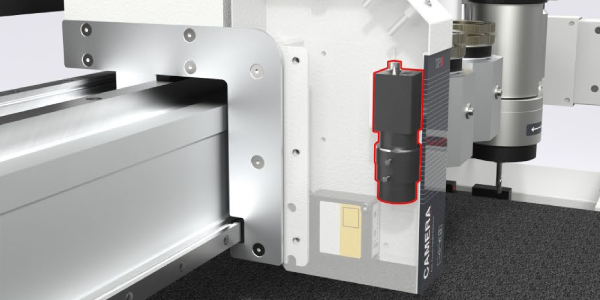

HD camera

Automatic knife installation / AKl

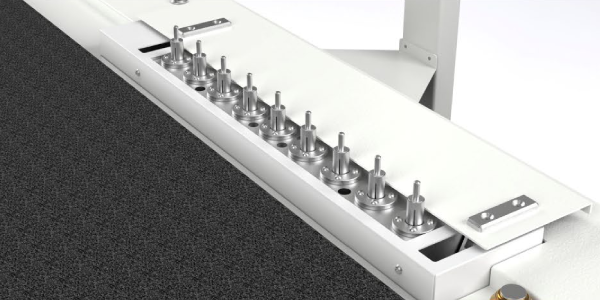

Automatical route bit changer / ARC

X9-1216 Main technical parameters

Item Parameter Item Parameter
Overall dimension 3580×2750×2200mm  Drive system Full servo,inear guide rai,synchronous belt Capacity
Work area 1600×1200mm  Servo motor qty. 7pcs for 3 cutting heads.
Work platform Aluminum alloy honeycomb table and
conveying carpet		  Capacity 380V/220V3       phase,(60~50Hz)
Maxmaterial processing height ≤50mm
(Depending on different material)		  Equipment power 12kw(Including 1.8Kw spindle)
Beam height 70mm  Vacuum pump power 7.5 kw
Material fixation method Vacuum adsorption  Format of supported files ai/eps/dxf/plt/pdf /jpg/tif /tps
Max processing speed 72m/min.  Applications Apply to advertising, printing, marriagepresent and other industries, cancut KT board, corrugated board, cardboard, PP, sticker, vinyl, reflectingmaterial, compositive material and any other kinds of flexible materials ofthickness within 10mm,dependingon hardness of material.
Positioning method Camera
Repeatable cutting accuracy ±0.2mm

X9-2516 Main technical parameters

Item Parameter Item Parameter
Overall dimension 4040×3080×2280mm   Drive system Full servo,Jinear guiderai,synchronous beltCapacity
Work area 1600×2500mm   Servo motor qty. 7pcs for 3 cutting heads.
Work platform Aluminum alloy honeycomb table and
conveying carpet		   Capacity 380V/220V 3 phase,(60~50Hz)
Max material processing height ≤50mm
(Depending on ifferent material)		   Equipment power 12kw(Including 1.8Kw spindle)
Beam height 70mm   Vacuum pump power 7.5kw
Material fixation method Vacuum adsorption   Fomat of supported files ai/eps/dxf /plt/pdf /jpg/tif /tps
Max processing speed 72m/min.   Applications Apply to advertising, printing, marriagepresent and other industries, cancut KT board, corrugated board, cardboard, PP, sticker, vinyl, reflectingmaterial, compositive material and any other kinds of flexible materials ofthickness within 10mm,dependingon hardness of material.
Positioning method Camera
Repeatable cutting accuracy ±0.2mm

X9-3216 Main technical parameters

Item Parameter Item Parameter
Overall dimension 3600×4170×2280mm  Drive system Full servo,linear guide rail,synchronous belt Capacity
Work area 1600×3200mm  Servo motor qty. 7pcs for 3 cutting heads.
Work platform Aluminum alloy honeycomb table and
conveying carpet		  Capacity 380V/220V 3 phase,(60~50Hz)
Max material processing height ≤50mm
(Dependingon different material)		  Equipment power 12.4kw(Including 1.8Kw spindle)
Beam height 70mm  Vacuum pump power 7.5 kw
Material fixation method Vacuum adsoption  Format of supported files ai/eps/dxf/plt/pdf /jpg/tif /tps
Max processing speed 72m/min.  Applications Apply to advertising, printing, marriagepresent and other industries, cancut KT board, corrugated board, cardboard, PP, sticker, vinyl, reflectingmaterial, compositive material and any other kinds of flexible materials ofthickness within 10mm,dependingon hardness of material.
Positioning method Camera
Repeatable cutting accuracy ±0.2mm

X9-2532 Main technical parameters

Item Parameter Item Parameter
 Overall dimension 5535×3470×2280mm  Drive system Full servo,inear guide rail,synchronous belt Capacity
 Work area 3200×2500mm  Servo motor qty. 7pcs for 3 cutting heads.
 Work platform Aluminum alloy honeycomb table and
conveying carpet		  Capacity 380V/220V 3 phase,(60~50Hz)
 Max material processing height
≤50mm
(Dependingon different material)		  Equipment power 21kw(Including 1.8Kw spindle)
 Beam height 70mm  Vacuum pump power 2pcs 7.5kw
 Material fixation method Vacuum adsorption  Format of supported files ai/eps/dxf/plt/pdf /jpg/tif /tps
 Max processing speed 72m/min.  Applications Apply to advertising, printing, marriagepresent and other industries, cancut KT board, corrugated board, cardboard, PP, sticker, vinyl, reflectingmaterial, compositive material and any other kinds of flexible materials ofthickness within 10mm,dependingon hardness of material.
 Positioning method Camera
 Repeatable cutting accuracy ±0.2mm

Application industry

Available tools
Creasing wheel type1
Quick View
Driven rotary tool
Quick View
Electric oscillating tool
Quick View
Kiss cut tool
Quick View
Pneumatic oscillating tool
Quick View
Universal cutting tool
Quick View
V-cut tool
Quick View

Packing List

Product Name Dimension/mm Name Qty/Pkgs G.W/kgs N.W/kgs Volume/cbm
X9 3660*2260*1800 1 2050KGS 1600KGS 14.89

Terms of delivery

Loading port Ningbo/Shanghai
Delivery time 30 days after order confirmed
Ps: For customized configuration or dimension, please confirm with us.
