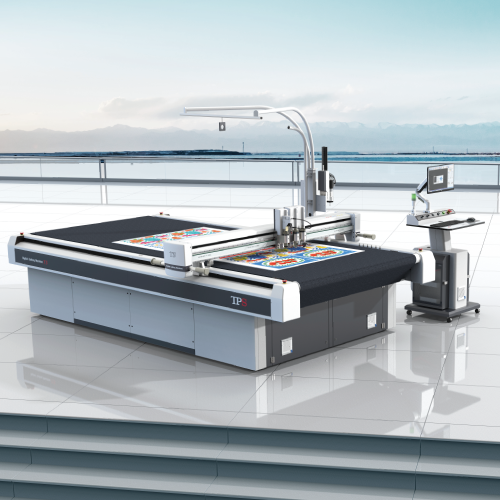

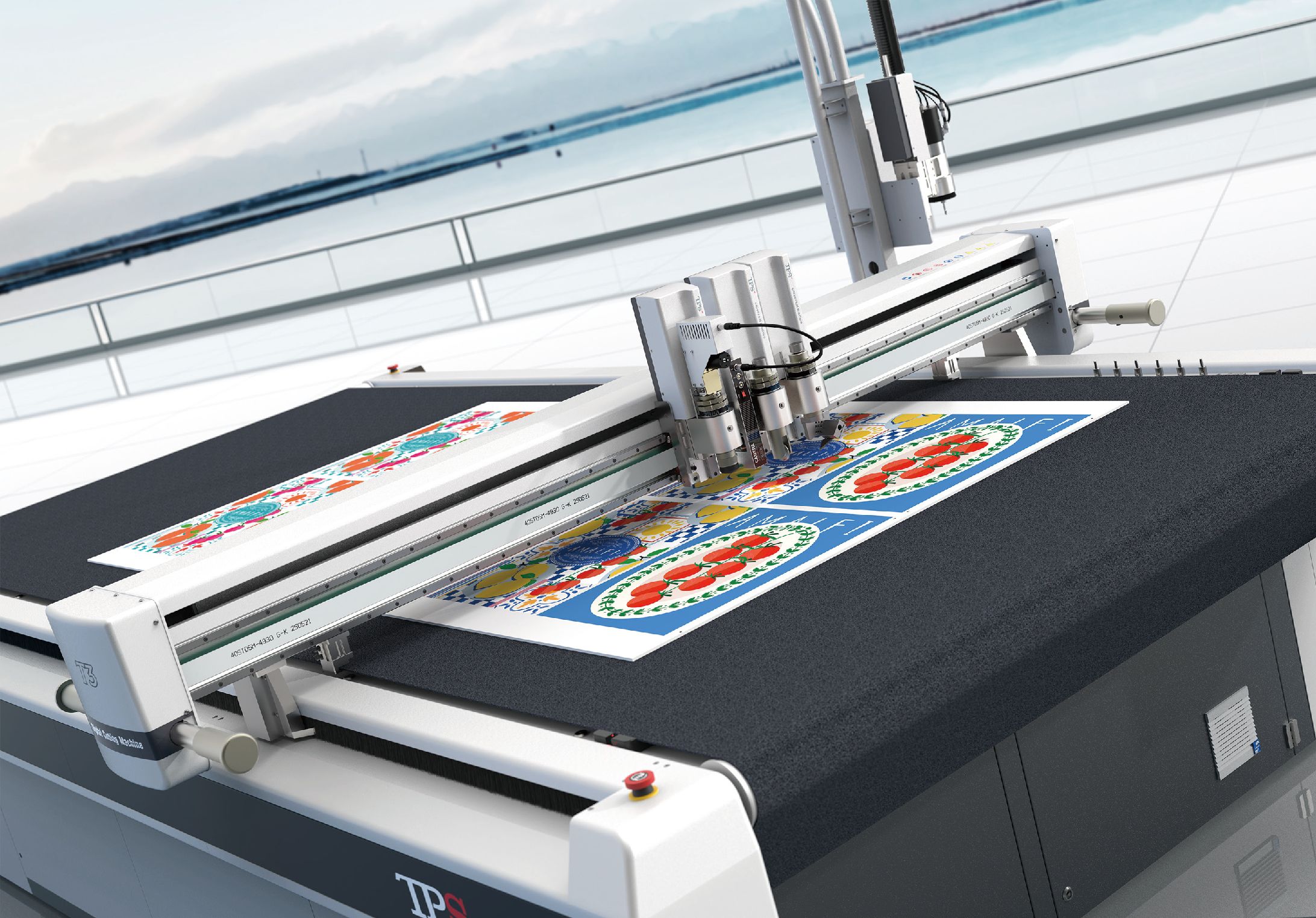

T3 Digital Cutting Machine

CONTACT NOW

Next: H5 Linear Motor Digital Cutting Machine
Prev: H9 Die Finishing Machine

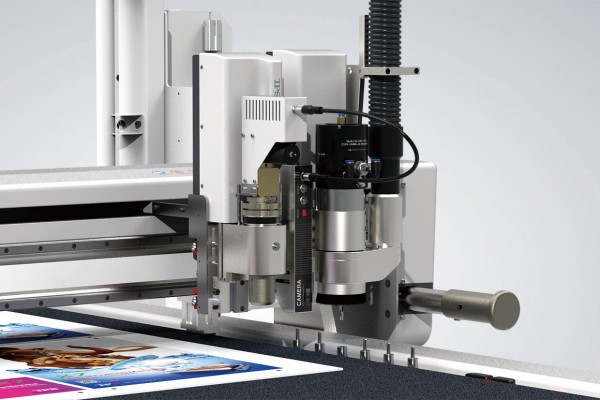

1.Cutting module

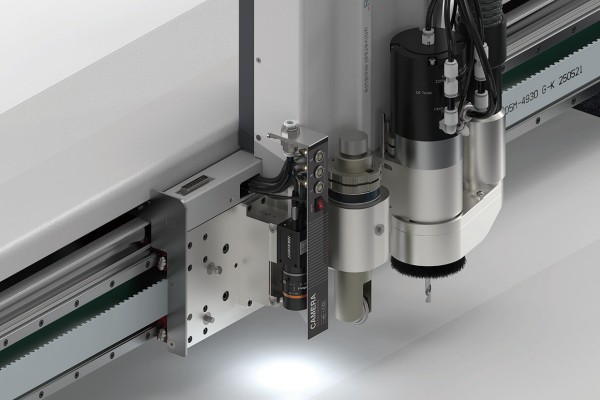

Two universal cutting heads apply to different cutting tools and one individual 1.8kw router head.
2.HD camera
High resolution Hikvision industrial camera.(1)FPS:173.(2)Interface:Gigabit Ethenet.(3)FA camera lens.
3.Laser distance detector

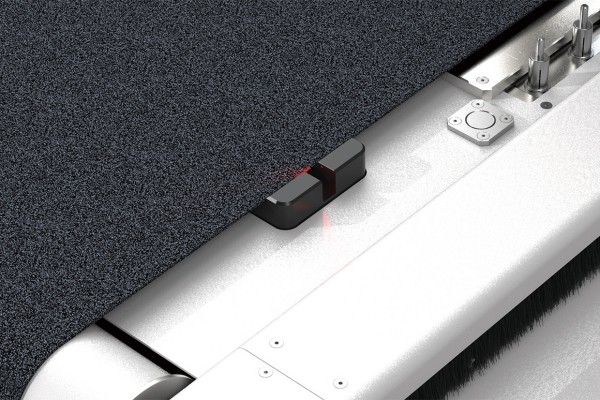

The flatness of tabletop is detected by a high-precision Japan made distance detector,and the tabletop is corected in real timeoy software toavoid the inconsistent cuting depth caused by the inconsistency between the tabletop and the tool drop,ensuring perfect cuting result.The sensorcould be also used to detect the thickness and shape of the diferent objects.
4.Safety anti-collision system
Equipped with safety ight curtain sensors and mechanical anti-colision mechanism to prevent the device from damagind personnel during high-speed moving.
5.Automatic knife installation /AKI
Pressure sensitive and laser sensitive automaticknife initialztion tool makes changing knife blades and router bits much saferand faster becauseoperator errors in connection with such changes are eliminated.

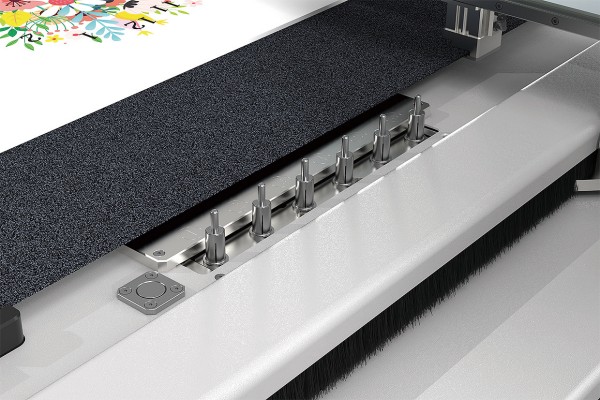

6.Automatic router bit changer/ARC
×9 cutter is equipped with a pneumatic clamping system.Together with the ARC,it can hold up to 9 router bits,which enables fully automatedrouting even with jobs that require different bit types and diameters.
7.Router module
1.8kw router module with speed of up to 60000 RPM,water cooling and air cooling,pneumatic clamping system,dust extraction ensures cleanworking conditions and impeccable edge quality.
8. Application industry
Application industry.png

Automatic knife installation / AKI	Automatical route bit changer / ARC
Three cutting heads	Three cutting headsHD camera

T3-2516 Main technical parameters

Item	Parameter
Overall dimension	3510×2550×1835mm
Work area	1600×2500mm
Max material size	1700×3000mm
Work platform	Aluminum alloy honeycomb table and conveying carpet
Maxmaterial processing height	≤35mm (Depending on different material)
Beam height	60mm
Material fixation method	Vacuum adsorption
Max processing speed	72m/min.
Positioning method	CCD Camera,Red light
Repeatable cutting accuracy	±0.1mm
Drive system	Fllservo,Linear guide railSynchronous belt
Servo motor qty	6pcs for 2 cutting heads
Servo motor qty	7pcs for 3 cutting heads
Capacity	380V 3 phase /60~50Hz
Equipment power	2.5kw
Vacuum pump	7.5Kw
Net weight	1300Kg
Format of supported files	ai/eps/dxf/plt/pdf /jpg/tif/tps

T3-2516 ATC Main technical parameters

Item	Parameter
Overall dimension	3510×2550×1835mm
Work area	1600×2500mm
Max material size	1700×3000mm
Work platform	Aluminum alloy honeycomb table and conveying carpet
Maxmatenal processing height	≤35mm (Depending on different material)
Beam height	60mm
Material fixation method	Vacuum adsorption
Max processing speed	72m/min.
Positioning method	CCD Camera,Red light
Repeatable cutting accuracy	±0.1mm
Drive system	Full servo,Linear guide rail,Synchronous belt
Servo motor qty.	6pcs for 2 cutting heads
Servo motor qty.	7pcs for 3 cutting heads
Capacity	380V3 phase /60~50Hz
Equipment power	2.5kw
Vacuum pump	7.5Kw
Net weight	1300Kg
Format of supported files	ai/eps/dxf/plt /pdf /jpg/tif /tps

T3-3216 ATC Main technical parameters

Item	Parameter
Overall dimension	4210×2550×1835mm
Work area	1600×3200mm
Max material size	1700×3700mm
Work platform	Aluminum alloy honeycomb table and conveying carpet
Maxmaterial processing height	≤35mm (Depending on different material)
Beam height	60mm
Material fixation method	Vacuum adsorption
Max processing speed	72m/min.
Positioning method	CCD Camera,Red light
Repeatable cutting accuracy	±0.1mm
Drive system	Full servo,Linear guide railSynchronous belt
Servo motor qty.	6pcs for 2 cutting heads
Servo motor qty.	7pcs for 3 cutting heads
Capacity	380V 3 phase /60~50Hz
Equipment power	2.5kw
Vacuum pump	7.5Kw
Net weight	1500Kg
Format of supported files	ai/eps/dxf/plt/pdf/jpg/tif/tps

T3-3216 ATC Main technical parameters

Item	Parameter
Overall dimension	4210×2550×1835mm
Work area	1600×3200mm
Max material size	1700×3700mm
Work platform	Aluminum alloy honeycomb table and conveying carpet
Maxmaterial processing height	≤35mm (Depending on different material)
Beam height	60mm
Material fixation method	Vacuum adsorption
Max processing speed	72m/min.
Positioning method	CCD Camera,Red light
Repeatable cutting accuracy	±0.1mm
Drive system	Full servo,Linear guide railSynchronous belt
Servo motor qty.	6pcs for 2 cutting heads
Servo motor qty.	7pcs for 3 cutting heads
Capacity	380V 3 phase /60~50Hz
Equipment power	2.5kw
Vacuum pump	7.5Kw
Net weight	1500Kg
Format of supported files	ai/eps/dxf/plt/pdf/jpg/tif/tps

T3-3221 ATC Main technical parameters

Item	Parameter
Overall dimension	4210×3020×1430mm
Work area	2100×3200mm
Max material size	2200×3700mm
Work platform	Aluminum alloy honeycomb table and conveying carpet
Maxmaterial processing height	≤35mm (Depending on different material)
Beam height	60mm
Material fixation method	Vacuum adsorption
Max processing speed	72m/min.
Positioning method	CCD Camera,Red light
Repeatable cutting accuracy	±0.1mm
Drive system	Full servoLinear guide rail,Synchronous belt
Servo motor qty.	8pcs for 2 cutting heads
Servo motor qty.	9pcs for 3 cutting heads
Capacity	380V 3 phase /60~50Hz
Equipment power	4.0kw
Vacuum pump	7.5Kw/2pcs
Net weight	1600Kg
Format of supported files	ai/eps/dxf/plt /pdf/jpg/tif/tps

T3-2532 ATC Main technical parameters

Item	Parameter
Overall dimension	3510×4150×2630mm
Work area	2500×3200mm
Max material size	2600×3700mm
Work platform	Aluminum alloy honeycomb table and conveying carpet
Maxmaterial processing height	≤35mm (Depending on different material)
Beam height	60mm
Material fixation method	Vacuum adsorption
Max processing speed	72m/min.
Positioning method	CCD Camera,Red light
Repeatable cutting accuracy	±0.1mm
Drive system	Full servo,Linear guide railSynchronous belt
Servo motor qty.	8pcs for 2 cutting heads
Servo motor qty.	9pcs for 3 cutting heads
Capacity	380V 3 phase /60~50Hz
Equipment power	4.0kw
Vacuum pump	7.5Kw/2pcs
Net weight	1700Kg
Format of supported files	ai/eps/dxf/plt/pdf/jpg/tif/tps
