服装行业电脑裁切机
The textile clothing industry

TPS digital cutting machine in clothing industry mainly makes samples for clothes and shoes with functions like stripe matching, plaids matching, cutting net collar, cutting lining etc, simplifying the sample-making task in clothing industry. The independent researched and developed CAM software systematically optimizes the phenomenon of overcut, maximally restores original contour and produces perfect outcome, which is convenient, understandable, and a save of time.

服装行业电脑裁切机

Equipment features:

1.TPS Technology researched and developed CAM software independently which prevents over-cutting at inner angles to recover graphic outline maximally.

2.Intelligent tabletop mapping function: the flatness of tabletop is measured with tabletop mapping by the high-precision height detector, and the tabletop can be height-compensated in real time by the TPS software to ensure perfect cutting result.

3.Realize matching the cut shapes of front and back sides intelligently according to the material edges.

4.Automatic tool calibration:  Quick and effortless tool exchange thanks to the fiber laser tool-tip height sensor.  It accurately and automatically calibrates the working depth for different tools and greatly contributes to simple operation.

5.Quick-replacement universal modules make simple and efficienct operation and save tool-changing time.

Cutting material

TPS digital cutting machine is equipped with advanced tool module quick replacement, which is strongly universal, easy, convenient and handy.

  • 裁切机通用刀座

    Universal tool module

  • 裁切机通用刀座与刀具结合

    Universal tool module and tool unit

  • 电脑裁切机带铣刀

    High performance high speed Milling Router

  • 电脑裁切机斜切刀

    Multi-angle V-Cut tool

  • 电脑裁切机压痕刀

    Creasing tool

  • 电脑裁切机轮切刀

    Wheel-cut tool

  • 电脑裁切机震动刀

    Electric Oscillating knife

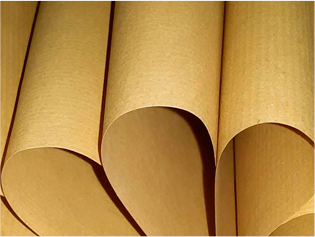

  • 牛皮纸电脑裁切机

    Kraft paper

    Sample-making of garment components,
    processing

    Tool selection

    Oscillating knife, creasing tool

  • 白卡纸电脑裁切机

    White paperboard

    Sample-making of garment components,
    processing copies

    Tool selection

    Oscillating knife, creasing tool

  • 鸡皮纸电脑裁切机

    M.G. wrapping paper

    Sample-making of garment components,
    processing

    Tool selection

    Oscillating knife, V-cut tool

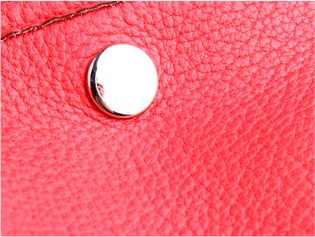

  • 红硬皮质电脑裁切机

    Red hard leather paper

    Sample-making of garment components,
    processing

    Tool selection

    Oscillating knife, V-cut tool

  • PVC板电脑裁切机

    PVC board

    Sample-making of garment components,processing,
    clothing dust cover

    Tool selection

    Drag tool

  • 纤维中底板电脑裁切机

    Cellulose insole board

    Sample-making of garment
    components,
    processing

    Tool selection

    Oscillating knife

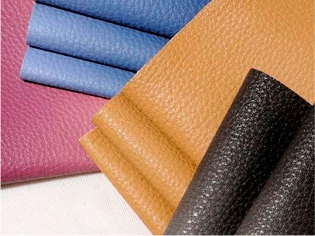

  • PU皮革电脑裁切机

    PU leather

    Sample-making of garment
    components,
    processing

    Tool selection

    Oscillating knife

  • 帆布电脑裁切机

    Canvas

    Sample-making of garment
    components,
    processing

    Tool selection

    Wheel-cut tool

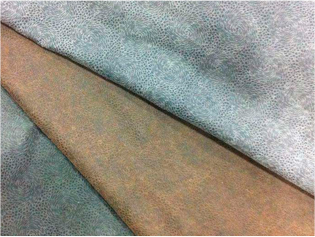

  • 仿皮电脑裁切机

    Artificial leather

    Sample-making of garment components, processing

    Tool selection

    Oscillating knife

  • 海绵电脑裁切机

    Sponge

    Sample-making of garment components, processing

    Tool selection

    Oscillating knife

  • 混纺布料电脑裁切机

    Blended fabric

    Sample-making of garment components, processing

    Tool selection

    Wheel-cut tool

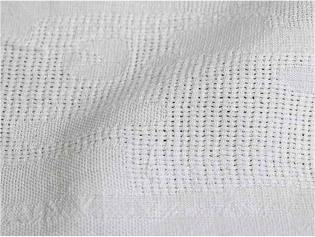

  • 棉麻料电脑裁切机

    Cotton and hemp material

    Sample-making of garment components, processing

    Tool selection

    Wheel-cut tool

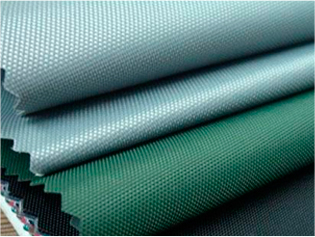

  • 牛津布电脑裁切机

    Oxford cloth

    Sample-making of garment components, processing

    Tool selection

    Wheel-cut tool

  • 皮毛电脑裁切机

    Fur

    Sample-making of garment components, processing

    Tool selection

    Oscillating knife

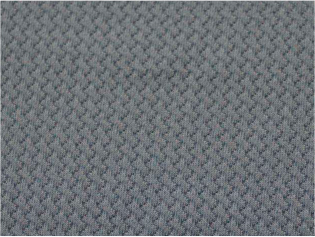

  • 针织电脑裁切机

    Knit

    Sample-making of garment components, processing

    Tool selection

    Wheel-cut tool

TPS digital cutter VS Manual cutting

The production efficiency improved by 3 times max.

  • 开袋

    Slit pocket

    Efficiency improved by 1.5-2 times

    Tradition: 150 pcs/day

    (need positioning, manual, quality unguaranteed)

    TPS digital cutter: 500 pcs/day

    (no positioning, quality guaranteed)


  • 袋盖

    Pocket flap

    Efficiency improved by 1.5-2 times

    Tradition: 200 pcs/day

    (quality unguaranteed)


    TPS digital cutter: 400 pcs/day

    (quality guaranteed)


  • 装拉链

    Zip insertion

    Efficiency improved by 1.5-2 times

    Tradition: 160 pcs/day

    (quality unguaranteed)


    TPS digital cutter: 240 pcs/day

    (quality guaranteed)


  • 前中拉链

    Front and center zip

    Efficiency improved by  2  times

    Tradition: 150 pcs/day

    (need skilled sewing workers, quality unguaranteed)


    TPS digital cutter: 300 pcs/day

    (skilled or unskilled sewing workers, easy operating, quality guaranteed)


  • 贴袋

    Patch pocket

    Efficiency improved by 2-3 times

    Tradition: drawing lines and points manually, ironing and pressing

    (multi-person cooperation)

    TPS digital cutter: drawing automatically by plotting pen.

    (no pocket creasing, low labor cost, high efficiency)


  • Open cuffs

    Open cuffs

    Efficiency improved by 1.5-2 times

    Tradition: 400 pcs/day

    (need to set points position manually)

    TPS digital cutter: 1800 pcs/day

    (drawing position ponts automatically)


  • 衬衫领

    Shirt collar

    Efficiency improved by 2-3 times

    Tradition: 200 pcs/day

    (need skilled sewing workers and drawing sewing position manually)

    TPS digital cutter: 600 pcs/day

    (skilled or unskilled sewing workers, quality guaranteed)


Hardware advantages of cutting machine

电脑切割机硬件优势

Quick replacement tool modules

TPS digital cutting machine is with advanced, standard and universal tool modules for replacing tools easily and quickly. It is very handy during processing a wide variety of materials.

Multiple tools

Full range of tools: router, electric oscillating knife, V-cut tool, drag tool, creasing tool, kiss-cut tool, plotting pen etc. Different tools for different materials.

Magnalium Vacuum Absorption Tabletop

The tabletop is durable and non-deforming with vacuum absorption design: strong wind strong suction.(easy for absorbing small items)

Vacuum cleaning pipe and base stand

The whole cutting process is without smell and dust, which is good for workers’ health and up to the environmental protection standard.

电脑切割机硬件优势

Software features

TPS digital cutting machine adopts self-researched and self-developed CAM software, in which users’ needs are perfectly considered. It is a full-automatic intelligent cutting system that integrates performance, speed and quality, which can realize various craftworks like full cutting, half cutting, boring and milling, punching, creasing, marking etc. Easy operation, multiple and practical functions, together with tool modules quick replacement can meet customized needs of users.

电脑切割机软件特点

Automatic tool calibration

Tool or bit exchange is fast and effortless thanks to the fiber laser tool tip height sensor. It accurately and automatically calibrates the working depth for different tools and greatly contributes to simple operation.

High definition CCD camera

The high definition CCD camera can realize automatic positioning and cutting on various materials, which eradicates problems like inaccurate manual positioning and print deformation.

Automatic switch of two heads

The cutting process realizes automatic switch of two heads and satisfies different craftwork needs of different materials.

Vacuum absorption

With strong wind and strong suction, the size of vacuum absorption area is selectable, greatly reducing electricity consumption.

Material automatic recognition

Material thickness can be automatically measured instead of manual measurement, then it will be recorded into the software.

电脑切割机软件特点

Cutting workflow diagram

裁切机打样流程示意图

Technical parameters

Main technical parameters of the machine

Item: Parameter:
Equipment power: 2.5kw
Vacuum pump power: 7.5kw
Voltage: 380V 3 phase
Work area: 1600x2500mm
Max. material size: 1700x3000mm
Material max. processing height: 50mm
Beam height: 60mm
Max. processing speed: 72m/min.
Servo motor qty: 6pcs
Fixing method: Welded integration
Cutting accuracy: ±0.1mm
Positioning method: High-definition CCD camera、Automatic edge recognition
Automatic media-feeding: Yes
Applied material: KT board, PVC foam board, PP, sticker, acrylic, corrugated board, honeycomb board, corrugated plastic, grey board, paper, leather, blanket, MDF, aluminum composite sheet, insulating board, fiber cloth, medium fiber board, flag fabric, textile fabric,etc.
